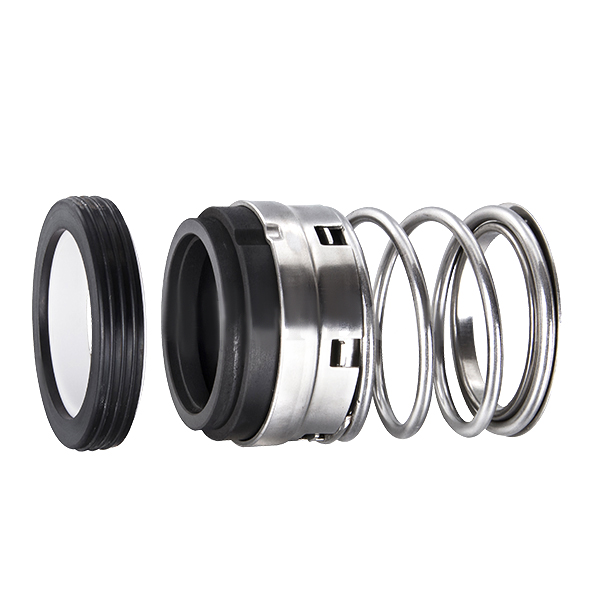

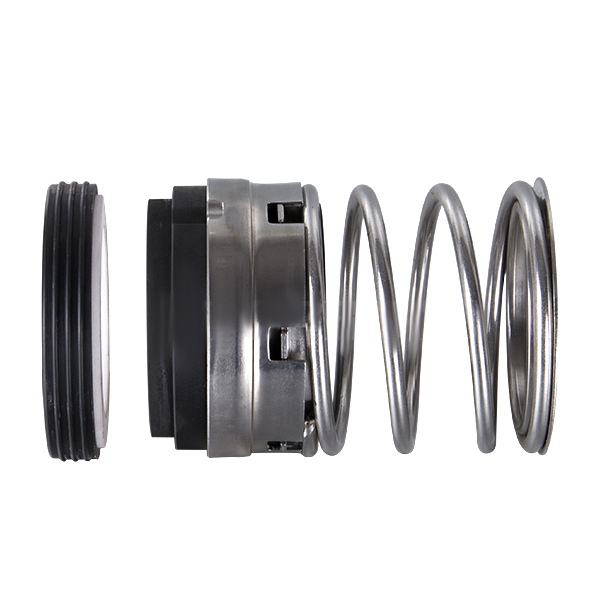

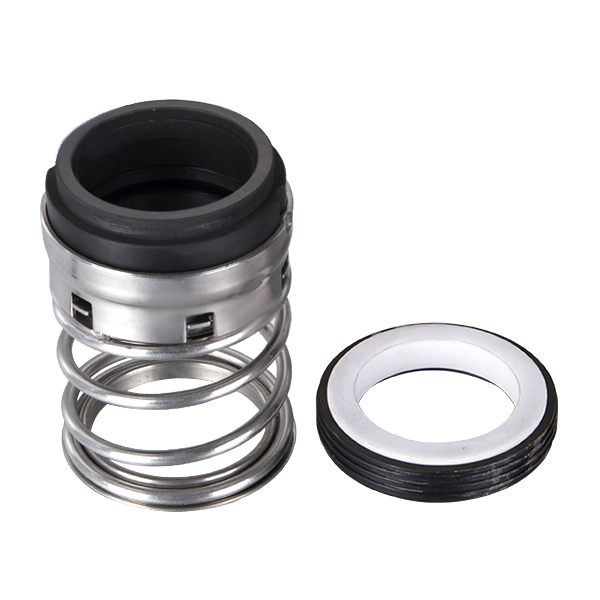

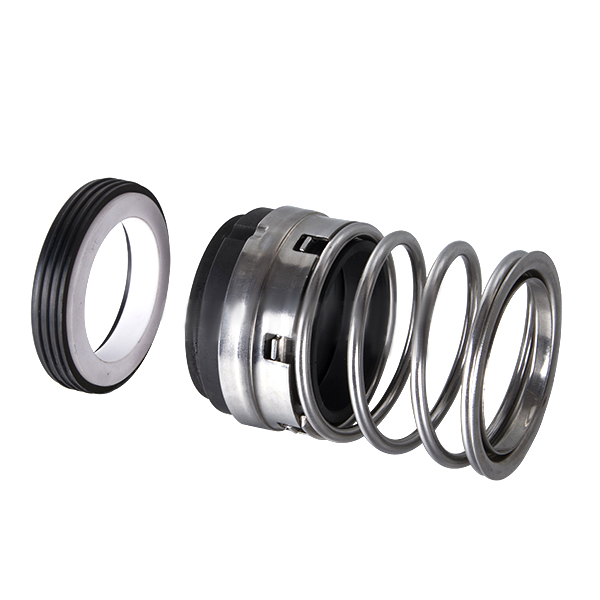

Můžete si být jisti, že si u nás zakoupíte mechanické ucpávky TYPU 1B. Těšíme se na spolupráci s vámi, pokud chcete vědět více, můžete se s námi nyní poradit, včas vám odpovíme!
d (palce) | d0 | d | D3 | D2 | D1 | L1 | L2 | L6 |
1.000 | 25.4 | 22.2 | 38.1 | 33.32 | 41.28 | 47.63 | 10.31 | 8.7 |
1.125 | 28.5 | 25.4 | 41.28 | 36.5 | 44.44 | 49.2 | 11.1 | 8.7 |
1.250 | 31.7 | 28.5 | 46.02 | 39.7 | 47.63 | 49.2 | 11.1 | 8.7 |
1.375 | 34.9 | 31.7 | 47.63 | 42.84 | 50.8 | 50.8 | 11.1 | 8.7 |
1.500 | 38.1 | 34.9 | 50.8 | 46.05 | 53.98 | 50.8 | 11.1 | 8.7 |
1.625 | 41.2 | 38.1 | 57.15 | 50.8 | 60.33 | 60.33 | 12.7 | 11.1 |
1.750 | 44.4 | 41.2 | 60.33 | 53.97 | 63.5 | 60.33 | 12.7 | 11.1 |
1.875 | 47.6 | 44.4 | 63.5 | 57.15 | 66.68 | 63.5 | 12.7 | 11.1 |
2.000 | 50.8 | 47.6 | 66.68 | 60.32 | 69.85 | 63.5 | 12.7 | 11.1 |
2.125 | 53.9 | 50.8 | 71.42 | 60.32 | 76.2 | 69.85 | 14.27 | 12.7 |
2.250 | 57.1 | 53.9 | 74.6 | 61.9 | 79.38 | 69.85 | 14.27 | 12.7 |
2.375 | 60.3 | 57.1 | 77.77 | 67.39 | 82.55 | 73.03 | 14.27 | 12.7 |
2.500 | 63.5 | 60.3 | 80.95 | 68.25 | 85.73 | 73.03 | 14.27 | 12.7 |
2.625 | 66.6 | 63.5 | 85.73 | 71.42 | 85.73 | 79.38 | 15.88 | 14.27 |
2.750 | 69.8 | 66.6 | 88.9 | 74.6 | 88.9 | 79.38 | 15.88 | 14.27 |
2.875 | 73 | 69.8 | 92.08 | 77.77 | 95.25 | 82.55 | 15.88 | 14.27 |
3.000 | 76.2 | 73 | 95.25 | 80.95 | 98.43 | 82.55 | 15.88 | 14.27 |
3.125 | 79.3 | 76.2 | 101.6 | 84.12 | 101.6 | 88.9 | 19.84 | 15.88 |
3.250 | 82.5 | 79.3 | 104.78 | 87.3 | 104.78 | 88.9 | 19.84 | 15.88 |
3.375 | 85.7 | 82.5 | 107.95 | 90.47 | 107.95 | 88.92 | 19.84 | 15.88 |
3.500 | 88.9 | 85.7 | 111.13 | 93.65 | 111.13 | 88.9 | 19.84 | 15.88 |
3.625 | 92 | 88.9 | 114.3 | 96.82 | 114.3 | 92.08 | 19.84 | 15.88 |
3.750 | 95.2 | 92 | 117.48 | 100 | 117.48 | 92.08 | 19.84 | 15.88 |
3.875 | 98.4 | 95.2 | 120.65 | 103.17 | 120.65 | 95.25 | 19.84 | 15.88 |
4.000 | 101.6 | 98.4 | 123.83 | 106.35 | 123.85 | 95.25 | 19.84 | 15.88 |
